Online course 3: 1.4 to 2.0 migration

Gabès Jean

Hi,

This is our third online course, we are now looking at the migration to the 2.0 from the 1.4 one :)

We will install a 1.4.1 version and we will migrate to a 2.0 one. So let's start :)

You can follow this tutorial with this video:

(You can also have a fr version of the video)

Install the 1.4 version

In the 1.4 version, there was an install script. We already talk about why we deprecated it in the 2.0 blog entry. We will use it in order to install our 1.4 version on a debian box.

root@debian$ wget http://www.shinken-monitoring.org/pub/shinken-1.4.1.tar.gz
root@debian$ tar xvfz shinken-1.4.1.tar.gz
root@debian$ cd shinken-1.4.1/
root@debian$ ./install -i

And here we got a lot of magic. In fact it will do quite the same as you did in the first course but without you know it. Like we said on the blog post we prefer that you trully understand the install phase.

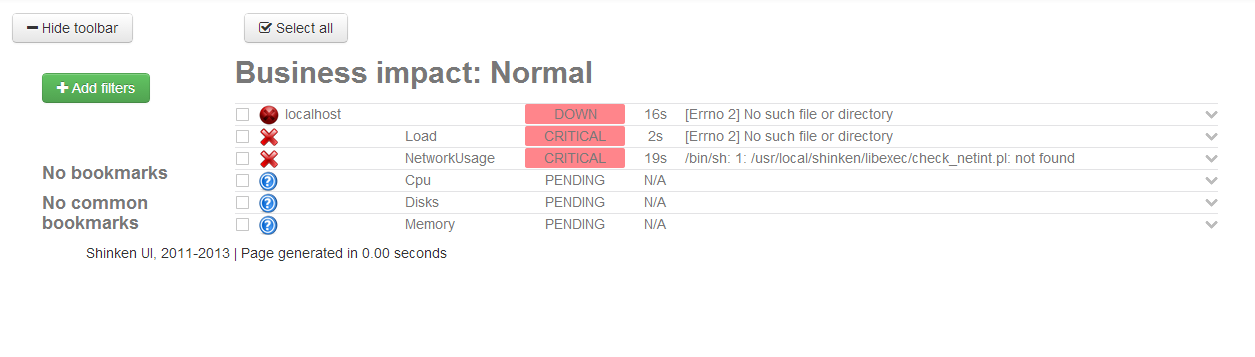

After the installation, the shinkendaemons are alive and all is working:

root@debian$ ps -fu shinken
UID        PID  PPID  C STIME TTY          TIME CMD
shinken  19876     1  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-scheduler -d -c /usr/local/shinken/etc/schedulerd.ini
shinken  19882 19876  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-scheduler -d -c /usr/local/shinken/etc/schedulerd.ini
shinken  19888     1  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-poller -d -c /usr/local/shinken/etc/pollerd.ini
shinken  19895 19888  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-poller -d -c /usr/local/shinken/etc/pollerd.ini
shinken  19903     1  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-reactionner -d -c /usr/local/shinken/etc/reactionnerd.ini
shinken  19909 19903  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-reactionner -d -c /usr/local/shinken/etc/reactionnerd.ini
shinken  19918     1  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-broker -d -c /usr/local/shinken/etc/brokerd.ini
shinken  19928 19918  4 15:51 ?        00:00:05 python /usr/local/shinken/bin/shinken-broker -d -c /usr/local/shinken/etc/brokerd.ini
shinken  19930     1  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-receiver -d -c /usr/local/shinken/etc/receiverd.ini
shinken  19937 19930  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-receiver -d -c /usr/local/shinken/etc/receiverd.ini
shinken  19948     1  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-arbiter -d -c /usr/local/shinken/etc/nagios.cfg -c /usr/local/shinken/etc/shin
shinken  19952 19948  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-arbiter -d -c /usr/local/shinken/etc/nagios.cfg -c /usr/local/shinken/etc/shin
shinken  19965 19948  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-arbiter -d -c /usr/local/shinken/etc/nagios.cfg -c /usr/local/shinken/etc/shin
shinken  20008 19918  2 15:51 ?        00:00:02 python /usr/local/shinken/bin/shinken-broker -d -c /usr/local/shinken/etc/brokerd.ini
shinken  20017 19918  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-broker -d -c /usr/local/shinken/etc/brokerd.ini
shinken  20055 19888  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-poller -d -c /usr/local/shinken/etc/pollerd.ini
shinken  20058 19903  0 15:51 ?        00:00:00 python /usr/local/shinken/bin/shinken-reactionner -d -c /usr/local/shinken/etc/reactionnerd.ini

The important thing to search is the place of the 1.4 configuration files:

  • /usr/local/shinken/etc/nagios.cfg: main configuration file, for hosts, commands and such nagios objets
  • /usr/local/shinken/etc/shinken-specific.cfg: side configuration file, mainly about daemons (scehdulers, brokers, ...) and the modules

In the 2.0 version, we only got the /etc/shinken/shinken.cfg that is loading configuration directories, so we got only one main file. But hopefully the /etc/init.d/shinken init.d script is still able to load two file, especially for this migration phase :)

Please mind to stop the shinken daemons before install the 2.0 :

root@debian$ /etc/init.d/shinken stop

And then we will be able to install the 2.0 version :)

Install the 2.0 version

Here it's like the first course so please refer to this last one for the prereqs.

root@debian:$ pip install shinken
[...]
Successfully installed shinken

We now got a ready to run 2.0 version, but currently with its own configuration files:

root@debian:$ ls -thor /etc/shinken/
-rw-r--r-- 1 shinken 8.4K Mar 10 15:59 time_templates.cfg
-rw-r--r-- 1 shinken  255 Mar 10 15:59 sample.cfg
-rw-r--r-- 1 shinken   84 Mar 10 15:59 dev.cfg
-rw-r--r-- 1 shinken 3.6K Mar 10 15:59 shinken.cfg
drwxr-xr-x 5 shinken 4.0K Mar 10 15:59 sample
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 schedulers
drwxr-xr-x 3 shinken 4.0K Mar 10 15:59 certs
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 commands
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 services
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 servicegroups
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 reactionners
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 contactgroups
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 arbiters
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 receivers
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 notificationways
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 modules
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 pollers
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 packs
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 hosts
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 discovery
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 contacts
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 templates
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 realms
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 hostgroups
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 dependencies
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 resource.d
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 brokers
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 timeperiods
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 escalations
drwxr-xr-x 2 shinken 4.0K Mar 10 15:59 daemons

But we want to have our 1.4 configuration. So we will just link the init.d configuration to our old configration that run well since long. We just need to edit the /etc/default/shinken file to change the SHINKENCFG and the SHINKENSPECIFICCFG path to link to our previous nagios.cfg and shinken-specific.cfg files.

root@debian:$ vi /etc/default/shinken
SHINKENCFG="/usr/local/shinken/etc/nagios.cfg"
SHINKENSPECIFICCFG="/usr/local/shinken/etc/shinken-specific.cfg"

Warning: the SHINKENSPECIFICCFG is by default commented, remind to uncomment it ;)

Then we can give a try to a check:

root@debian:~# /etc/init.d/shinken check
Doing config check
. ok

Looks great :)

So we can restart it :

root@debian$ /etc/init.d/shinken start

If we look at the processes, the arbiter load the nagios.cfg and the shinken-specific.cfg:

root@debian$ ps -fu shinken
UID        PID  PPID  C STIME TTY          TIME CMD
shinken  22147     1  1 16:10 ?        00:00:00 python /usr/bin//shinken-scheduler -d -c /etc/shinken/daemons/schedulerd.ini
shinken  22150 22147  0 16:10 ?        00:00:00 python /usr/bin//shinken-scheduler -d -c /etc/shinken/daemons/schedulerd.ini
shinken  22189     1  0 16:10 ?        00:00:00 python /usr/bin//shinken-poller -d -c /etc/shinken/daemons/pollerd.ini
shinken  22192 22189  0 16:10 ?        00:00:00 python /usr/bin//shinken-poller -d -c /etc/shinken/daemons/pollerd.ini
shinken  22234     1  0 16:10 ?        00:00:00 python /usr/bin//shinken-reactionner -d -c /etc/shinken/daemons/reactionnerd.ini
shinken  22237 22234  0 16:10 ?        00:00:00 python /usr/bin//shinken-reactionner -d -c /etc/shinken/daemons/reactionnerd.ini
shinken  22279     1  0 16:10 ?        00:00:00 python /usr/bin//shinken-broker -d -c /etc/shinken/daemons/brokerd.ini
shinken  22282 22279  0 16:10 ?        00:00:00 python /usr/bin//shinken-broker -d -c /etc/shinken/daemons/brokerd.ini
shinken  22325     1  0 16:10 ?        00:00:00 python /usr/bin//shinken-receiver -d -c /etc/shinken/daemons/receiverd.ini
shinken  22328 22325  0 16:10 ?        00:00:00 python /usr/bin//shinken-receiver -d -c /etc/shinken/daemons/receiverd.ini
shinken  22363     1  0 16:10 ?        00:00:00 python /usr/bin//shinken-arbiter -d -c /usr/local/shinken/etc/nagios.cfg -c /usr/local/shinken/etc/shinken-specific.
shinken  22365 22363  0 16:10 ?        00:00:00 python /usr/bin//shinken-arbiter -d -c /usr/local/shinken/etc/nagios.cfg -c /usr/local/shinken/etc/shinken-specific.
shinken  22394 22189  0 16:10 ?        00:00:00 python /usr/bin//shinken-poller -d -c /etc/shinken/daemons/pollerd.ini
shinken  22402 22234  0 16:10 ?        00:00:00 python /usr/bin//shinken-reactionner -d -c /etc/shinken/daemons/reactionnerd.ini

But the WebUI page is in 404, why? Let's look at the broker daemon logs:

root@debian$ less /var/log/shinken/brokerd.log
2014-03-10 16:10:21,211 [1394464221] Warning : [broker-1] The module type livestatus for Livestatus was not found in modules!
2014-03-10 16:10:21,212 [1394464221] Warning : [broker-1] The module type simple-log for Simple-log was not found in modules!
2014-03-10 16:10:21,213 [1394464221] Warning : [broker-1] The module type webui for WebUI was not found in modules!

Why? Becase like we said in the 2.0 blog entry, the 2.0 came with no modules, you need to install them manually. In fact all we need at the module codes (python) because we alrady got the configuration part in the /usr/local/shinken/etc/shinken-specific.cfg file :)

All the modules you need are in the shinken.io website. But first let's give a try to which modules are need by just greping the shinken-specific.cfg file:

root@debian$ grep modules /usr/local/shinken/etc/shinken-specific.cfg
modules Apache_passwd, ActiveDir_UI, Cfg_password, PNP_UI, Mongodb, Glances_UI
modules logsqlite
modules
modules
modules Livestatus, Simple-log, WebUI
modules CommandFile
modules PickleRetention
modules

I only kept the modules loaded from the daemons configurations or the modules (like Livestatus or WebUI). In fact we got some groups :

  • WebUI: Apache_passwd, ActiveDir_UI, Cfg_password, PNP_UI, Mongodb, Glances_UI are modules about authentification, graphs and user preference.
  • Livestatus: logsqlite is about how to save and read logs into the livestatus module
  • Broker : Livestatus, Simple-log, WebUI are about loading the agregated log file, the livestatus api and launching WebUI by default
  • Arbiter : CommandFile is about open and read the nagios.cmd file for the external commands
  • Scheduler: PickleRetention is about the retention module. We will analyse them in another course :)

All we need now is just to download and install theses modules. It will install the module code into the /var/lib/shinken/modules and the configuration into /etc/shinken.modules. But we don't mind about the last one, because /etc/shinken is no longer read for the configuration.

Here is a mapping about the modules names and their packages names into shinken.io:

Module name Package name
Apache_passwd->auth-htpasswd
ActiveDir_UI->auth-active-directory
Cfg_password->auth-cfg-password
PNP_UI->ui-pnp
Mongodb->mod-mongodb
logsqlite->logstore-sqlite
mongologs->logstore-mongodb
nulllogs->logstore-null
Livestatus->livestatus
Simple-log->simple-log
WebUI->webui
CommandFile->named-pipe
PickleRetention->pickle-retention-file-generic

Here we go, let's give a try to the modules installs :)

Beware: this must be done under the shinken user, and don't forget to launch the shinken --init on your first launch of the shinkexn CLI

shinken@debian#
shinken install auth-htpasswd
shinken install auth-active-directory
shinken install auth-cfg-password
shinken install ui-pnp
shinken install mod-mongodb
shinken install logstore-sqlite
shinken install logstore-mongodb
shinken install logstore-null
shinken install livestatus
shinken install simple-log
shinken install webui
shinken install named-pipe
shinken install pickle-retention-file-generic

Now we can restart our daemons. for this first launch launch it under the debug mode so you will see if there are still some errors:

root@debian$ /etc/init.d/shinken stop
root@debian$ /etc/init.d/shinken -d start

And try to look if the modules are load for the daemons :

root@debian$ grep correctly /var/log/shinken/*-debug.log
/var/log/shinken/broker-debug.log:[1394465689] Info :    [broker-1] I correctly loaded the modules: [Livestatus,Simple-log,WebUI]
/var/log/shinken/broker-debug.log:[1394465689] Info :    I correctly loaded the modules: [Apache_passwd,ActiveDir_UI,Mongodb,PNP_UI,Cfg_password]
/var/log/shinken/broker-debug.log:[1394465690] Info :    I correctly loaded the modules: [logsqlite]
/var/log/shinken/poller-debug.log:[1394465689] Info :    I correctly loaded the modules: []
/var/log/shinken/reactionner-debug.log:[1394465689] Info :    I correctly loaded the modules: []
/var/log/shinken/receiver-debug.log:[1394465689] Info :    [receiver-1] I correctly loaded the modules: []
/var/log/shinken/scheduler-debug.log:[1394465828] Info :    I correctly loaded the modules: [PickleRetention,PickleRetention]

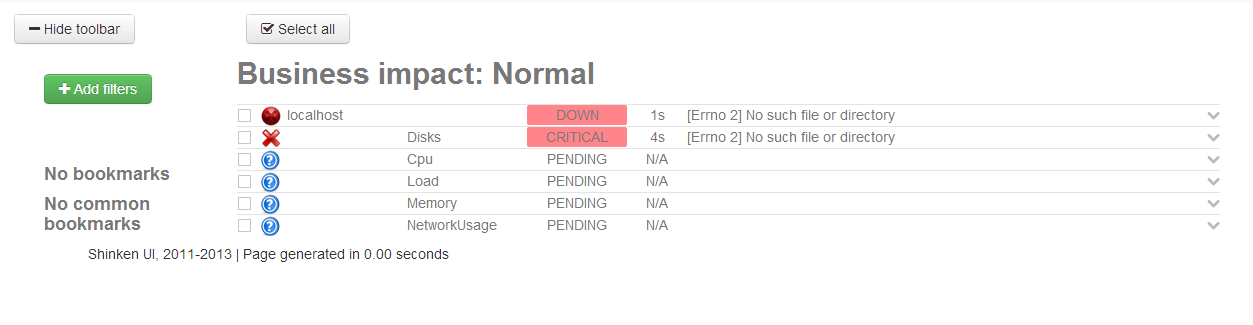

All the daemons with modules are now loading them, your migration is complete, you can enjoy your WebUI now :)

The next course

The next course will be about our first distributed setup: the high availability, with shinken spare daemons :)
